Cartons


We can produce cartons to any of the FEFCO styles and in many materials. See our stock range for items off the shelf. Alternatively, we can produce boxes to any size - plain or printed. (Please scroll down for grades of board and print information). Boxes should always be measured internally Length - Width - Height

Carton Styles

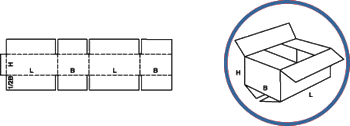

0201 Style
This is a standard carton to most people with flaps at both ends of the case
0201 Carton

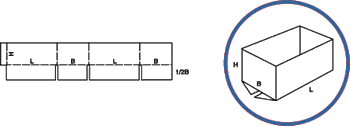

0200 Style
This style has flaps at one end only and is commonly used over products on Pallets
Carton Layout 0200 style

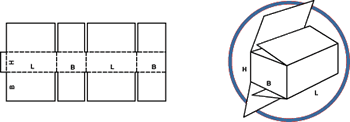

0203 Style
Fully overlapping End Flaps on this style make it very tough for heavy weights
Carton Layout 0203 style

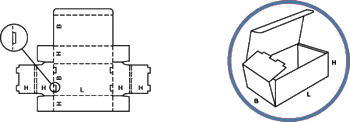

0421 Style
Hinged lid die-cut style which folds up and has a tuck in lid on the top of the carton

Carton Layout 0421 style

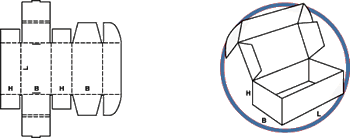

0427 Style
Hinged lid die-cut carton - but this one has an extra flap which locks into the front of the box

Carton Layout 0427 style

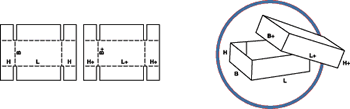

0300 Style
Die-cut box and lid in a similar style to a shoe box. Can be made as a shallow lid or full height
Carton Layout 0300 style



Board Grades

Materials used include:

* All B, C & E Flute Single wall boards (Light Duty)
* All B, C Grade Double wall boards (Medium Duty)
* All Tough wall grades of board (Light Export Quality)



Printed Cartons
We can offer single colour Flexo print right through all types of digital print (Minimum order quantities and Artwork and Print Plates may apply)



Flexo Printed cartons
Like the outer cartons found in supermarkets. Flexo is the cheapest print



Screen Print
A high quality print usually used on white boxes for low runs. Quite expensive



Litho Print
Photographic quality print used on software boxes etc. High runs required - but top quality
